10 Layer Impedance Control PCB Multilayer PCB Manufacturer High Frequency 1.6mm

Product Categories

Global Success Circuits Co.,Ltd

Contact Now

10 Layer Impedance Control PCB Multilayer PCB Manufacturer High Frequency 1.6mm

Name: 10 Layer Impedance Control PCB Multilayer PCB Manufacturer High Frequency 16mm
Brand: Global Success Circuits Co.,Ltd
Price: 0.35 USD

China 10 Layer Impedance Control PCB Multilayer PCB Manufacturer High Frequency 1.6mm wholesale

Brand Name : Global Success Circuits Co.,Ltd

Model Number : GSC-5AD56

Certification : UL , ISO , TS16949 , ROHS , REACH

Place of Origin : China

MOQ : 10Piece

Price : US$ 0.35 - 2.5 / Piece

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : 100，000㎡/Month

Delivery Time : 3 - 15 days

Packaging Details : Vacuum Packing and High Quality Carton Box

Material : FR4 TG150

Layer count : 10 layers

Board thickness : 1.6mm

Copper thickness : 1 oz

Minimum drill size : 0.10mm

Minimum trace & gap : 0.10mm

Contact Now

10 Layer Impedance Control PCB Multilayer PCB Manufacturer High Frequency 1.6mm

Overview
Quick Details
Place of Origin:China (Mainland)	Certificate:ISO/UL/RoHS
Base Material:FR-4 TG150	Copper Thickness:1oz	Board Thickness:1.6mm
Min. Hole Size:0.2mm	Min. Line Width:0.10mm	Min. Line Spacing:0.10mm
Surface Finishing:Immersion gold	Solder mask Color:Customized	Number of Layers:10 layer
Packaging & Delivery
Packaging Details:vacuum packing
Delivery Time:3-10 working days

lead time of 10 layers with Impedance Control PCB China Multilayer PCB High frequency

	Sample Lead time(days)	Mass production lead time(days)
Single sided PCB	1~3	4~7
Double sided PCB	2~5	7~10
Multilayer PCB	7~8	10~15

PCB capability of 10 layers with Impedance Control PCB China Multilayer PCB High frequency

Item	Description	Capability
Material	Laminate Material	FR4 (LF/High Tg), CEM3, CEM1, Alu, Rogers
Board Cutting	Number of Layer	1 to 20
Board Cutting	Min. Thickness_inner Layer	0.003" (0.07mm)
Board Thickness	Standard	0.04-0.16”±10% (0.1-4mm±10%)
	Min.	4/8 layers: 0.01±0.008”
	Bow & Twist	<7/1000
Copper Weight	Outer	0.5-4 oz
Copper Weight	Inner	0.5-3 oz
Drilling	Min Size	0.0078” (0.2mm)
	Drill Deviation	±0.02” (0.05mm)
	PTH/NPTH Hole Tolerance	±0.002” (0.005mm)
Plating	Min Hole Size	0.0008” (0.02mm)
Plating	Aspect Ratio	20 (5:1)
Solder Mask	Color	Green, White, Black, Red, Blue...
	Min Solder Mask Clearanace	0.003” (0.07mm)
	Thickness	0.0005-0.0007”(0.012-0.017mm)
Silkscreen	Color	White, Black, Yellow, Red, Blue...
Silkscreen	Min Size	0.006” (0.15mm)
E-test	Flying Probe Tester	Yes
Controlled Impedance	Tolerance	±10%
Surface Finish	HASL, ENIG, Immersion Gold/Silver/Tin, OSP...

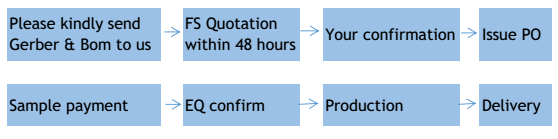

Project procedure for 10 layers with Impedance Control PCB China Multilayer PCB High frequency:

10 Layer Impedance Control PCB Multilayer PCB Manufacturer High Frequency 1.6mm

Product Glance for 10 layers with Impedance Control PCB China Multilayer PCB High frequency:
